Roll Type Sanitary Napkin Packing Machine With Full Servo Motor
Control
Specification Parameter:
| Model | QB-100 |
| Package Speed | 55-60 bag/min |
| Material | PE/ Aluminum film |
| Bag Process | Roll type tube bag |
| Package Range | L(80-130)*W(30-90)*H(80-200)mm |
| Machine Dimension | L(6000)*W(950)*H(2000)mm |
| Weight | 950KG |
| Power Supply | 3 phase,380V+N+PE, ±5%,50HZ |
| Capacity | 25KW |
| Air Consumption | 0.5 m³/min |
| Pneumatic | 0.6Mpa |
| Noise | ≤80dba |
Description of Machine:
1. All the key systems of the machine are equipped with overload,
limit protection and electric eye check to ensure the safe
operation of the machine.
2. Main machinery and electrical accessories are imported brands,
stable performance.
3. PLC control software is the core of the control, the built-in
programmable controller through programming can achieve reliable
control of the overall equipment. The machine adopts PLC and servo
point motor as control and drive unit to improve the degree of
automation. The main functions can be realized on the touch screen,
easy to operate.
4. High efficiency
Fast packaging speed, can be docked with the production line in the
front, and can be docked with the boxer at the back, enabling
unmanned operation from production to shipment, greatly improving
work efficiency and reducing employment costs.
5. Full Servo
Accurate positioning, fast speed, low noise and coordinated
movement.
6. Non-stop refueling
With two material trays, the next material tray is connected at the
end of one material tray to reduce downtime and increase production
Packaging Solution:Auto count+ Auto sealing
Project background:
Production line speed: 600PPM
Package Specification:10pcs/bag
Product size: 230mm,275mm,310mm

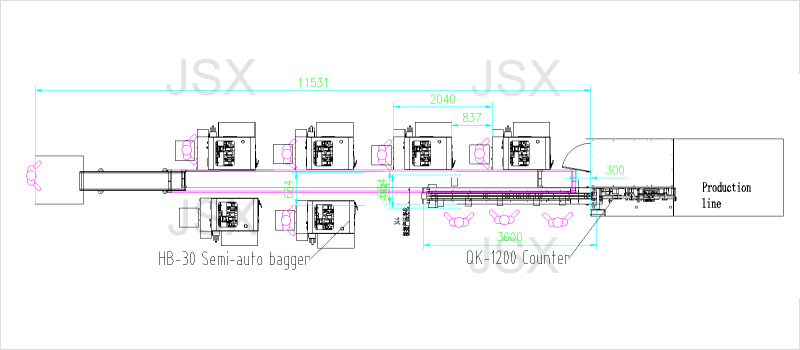

Solution: Counter QK1200 +Auto Packaging Machine QB-100
Customized Design Services:
1. We can assist in packaging size and design of packaging bags to
make the packaging more user-friendly.
2. We can assist in product design and make it more popular with
female users.
3. We can help to purchase packaging materials, so that customers
can save time and effort.
Applications:
Suitable for sanitary napkins of different specifications and
different bagging methods
After-sales service:
1. Provide complete mechanical instruction in English and Chinese
2. Training how to install the machine, training how to use the
machine.
3. Engineers available to service machinery overseas.
You are welcome to make an enquiry with us.
Contact me, get the latest design and best price!
