Panty Liner / Baby Diaper Counting Stacking Machine Low Noise High
Speed
Description:

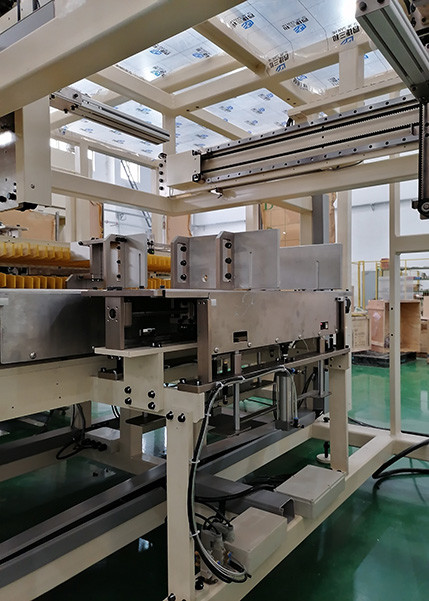

Full-auto counting: The full servo sanitary napkin counting stacker
is used to automatically complete the docking between the making
machine and the packing machine, automatic complete the function of
trimming, grading, stacking and feeding.
With function of overload protection-automatically stop,totally
automatic bonding with packaging machine and production line.
One counting stacker can be adapted with two or more packing
machines.
Change the mold will be more convenient, the different size can be
switch in one button from the parameter, two feeding device can be
arbitrarily selected specifications.
The three belts protect the product transport from three
directions, and keep the product center consistent, ensure stable
and reliable.
The motor connected with the separator board,quick response,the
position of separator preposition.
Coordinate with chain of packing machine to make the chain add
space station to realize the function of online manual feeding into
small stack.
It is driving by the separate servo motor Push the stacked products
into the chain mechanism steadily.
Safety protection device in accordance with the relevant provisions
.
Specifications:
| Specification Parameter | |
| Model | QD-N800W |
| Sanitary pad counting speed | 1200ppm |
| Counting range | 4-10pcs |
| Machine Dimension | L(5300)*W(3000)*H(2400)mm |
| Weight | 4500kg |
| Power supply | 3 phase, 380V+N+PE, ± 5%, 50HZ |
| Capacity | 45KW |
| Air Consumption | 0.5m³/min |
| Pneumatic | 0.6Mpa |
Custom-made machine:
We have Great customized and design ability. Any required custom
made machine can be
designed and manufactured for convenient operation and reasonable
cost, making your
packaging system work smoothly.
Installation:
1- We provide videos and instruction manual to show the process of
installation.
2- We provide training for installation for free in our factory.
3- We can send technician to buyer's factory to install the machine
and provide training service.
Applications:
Suitable for automatic stacking of sanitary napkins and pads of
different specifications
Competitive Advantage:
| 1.Counting the pad after poduction line, greatly improve working
efficiency. |
| 2.Capable of sanitary pad and panty line |
| 3.Full servo motor control make machine user-friendly |
| 4.Sensor limite protect all machine movment |
5.Change over setting selection available on HMI
|
We can customize the most suitable scheme for you according to your
factory layout and product characteristics
Packaging & Shipping
1. Size : According to sanitary napkin packing machine size.
2. Weight : About 32T.
3. Packaging Details : The normal package is wooden box(Machine
Size: L*W*H). Using a strong plastic bag to wrap outside of each
section,then packing each section by wooden case.
4. Shipping : By sea.
Our Sales Service
1. Inquiry and consulting support.
2. Soon delivery. Generally it is 60-120 days.
3. We will run the sanitary napkin packing machine for a few times
and use your materials to do the test if clients request. Only
guarantee the machine shows best performance and then we will ship
out.
4. Warranty: Normally one year.
5. Our engineers are available to install and train the machine
overseas or send you video and so on.
6. Payment terms: 30% as deposit,70% after the machine is ready
before delivery.
